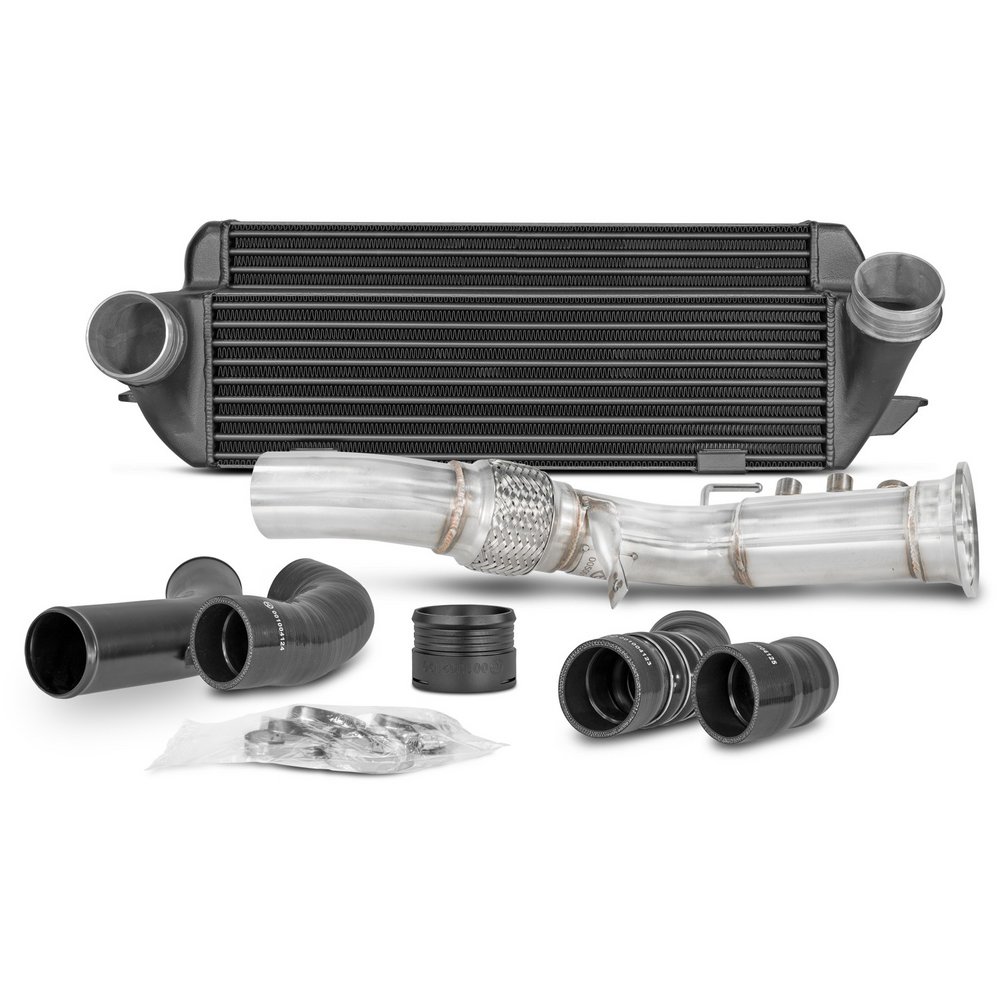

The Competition package for the BMW E-series consists of the intercooler upgrade kit EVO2 and the downpipe kit DPF replacement and fits the following vehicles.

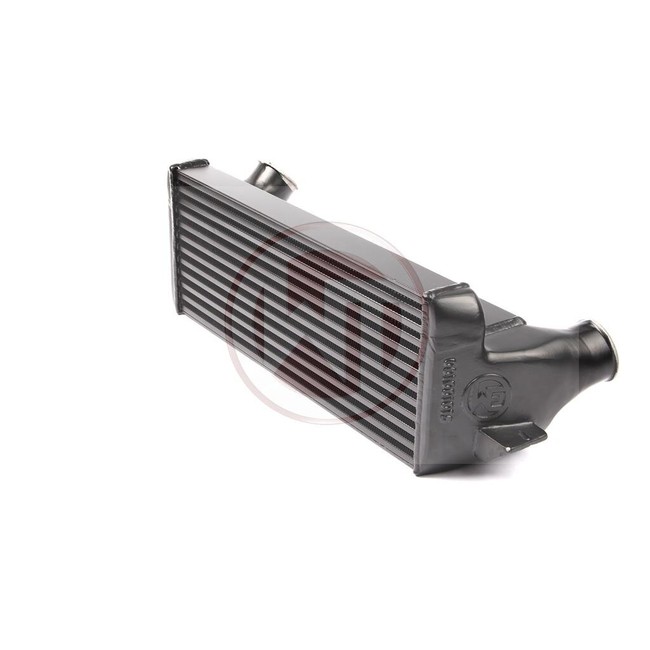

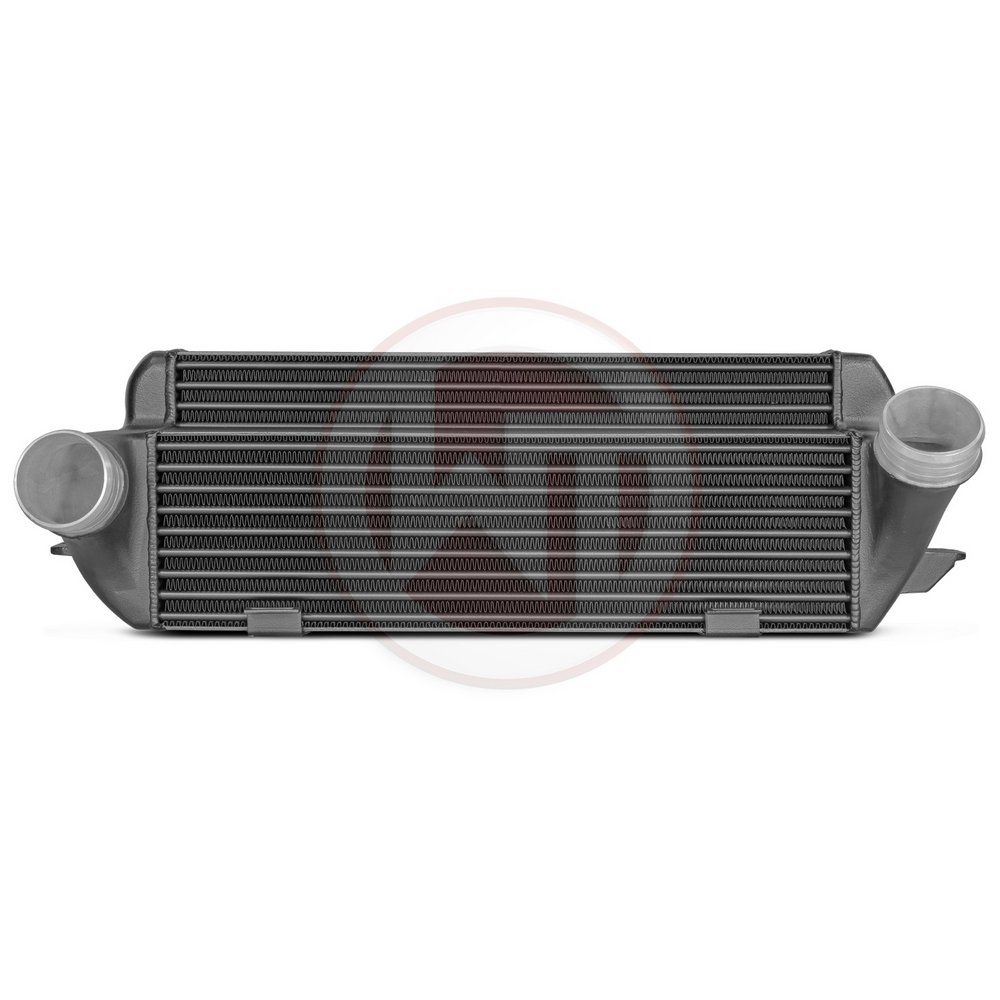

BMW 335d E90/E91/E92/E93Intercooler Upgrade Kit 200001170With impressive core dimensions of 520 mm x 210 mm x 150 mm (stepped volume: 13.6 liters), our high-performance intercooler offers an enormous 65% larger inflow area and a whopping 87% more charge air volume compared to the standard intercooler. The high-quality competition high-performance intercooler with internal turbulators guarantees the best performance and optimum cooling. Despite its impressive size, the intercooler weighs just 7.4 kg, making it a lightweight in its class.
The cast aluminium end boxes have been optimised using advanced flow analysis in the CFD system to ensure optimal airflow. The EVO3 intercooler kit was specially developed for the high demands of the large tuning stages on the BMW 335i. We have eliminated the original click connections and increased the connection diameter at the inlet and outlet to Ø70 mm, which means that the kit is equipped with reinforced silicone hoses. The result is outstanding cooling properties with minimal back pressure. In addition, all our intercoolers are coated with a high-quality anti-corrosion coating, which ensures long-lasting and optimum cooling with a significant increase in performance.
The EVO3 high-performance intercooler kit is completely ready to install and can be easily replaced with the standard intercooler. Due to its size, minor adjustments to the radiator support are required. The intercooler has been tested up to 6 bar and is pressure-stable, so that it also meets the requirements of racing. We attach great importance to continuous quality monitoring for all our products in order to guarantee you the highest quality at all times.
Take the performance of your BMW 335d to a new level and experience top performance with the EVO3 high-performance intercooler from Wagner Tuning!
The EVO II Competition intercooler kit is suitable for the following vehicles:
BMW 335d E90/91/92/93 (2005-2013)*Adaptations to the vehicle are necessary (see installation instructions)OEM intercooler
V = 7.29 L
A = 663 cm²
Wagner Tuning intercooler:
V = 13.6 L
A = 1092 cm²

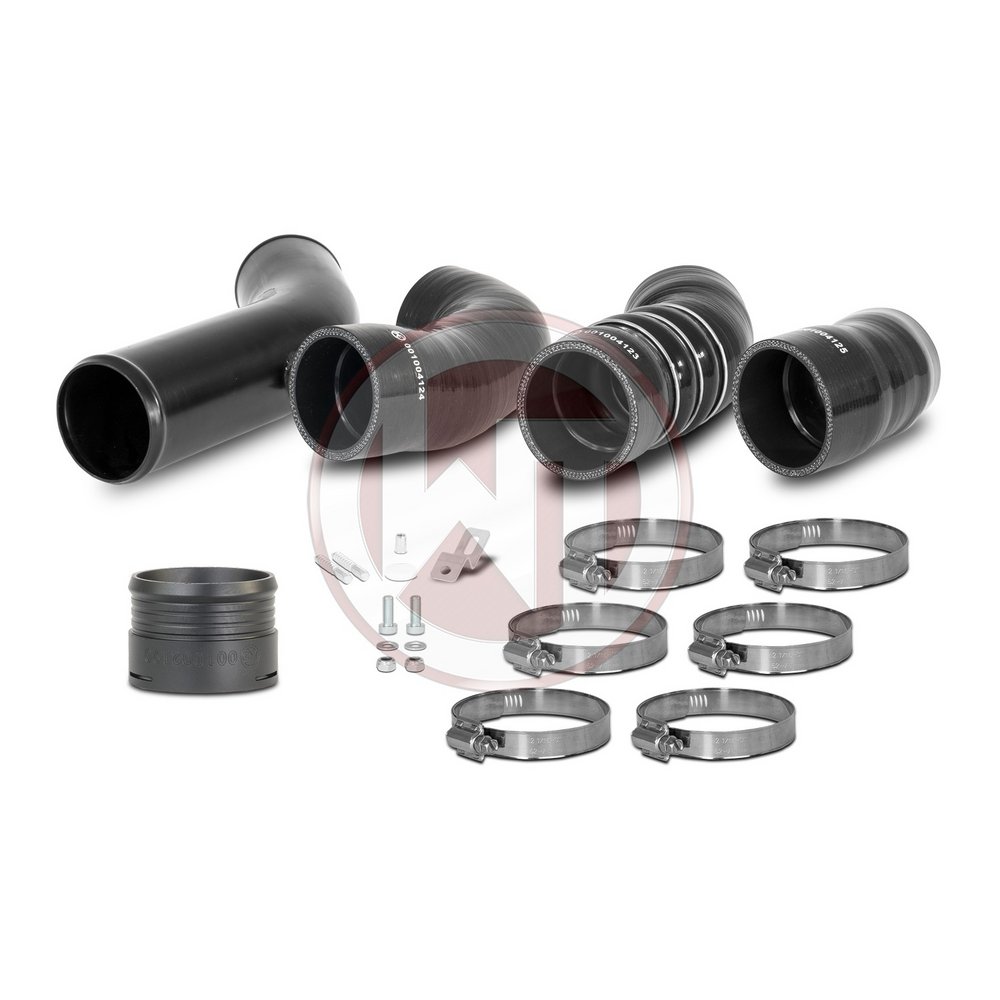

Part number: 200001170Kit comes with:
1 intercooler (black coated)
3 silicone hoses
1 aluminium adapter (black anodized)
1 aluminium charge air pipe (black anodized)
1 mounting material
1 assembly instructions

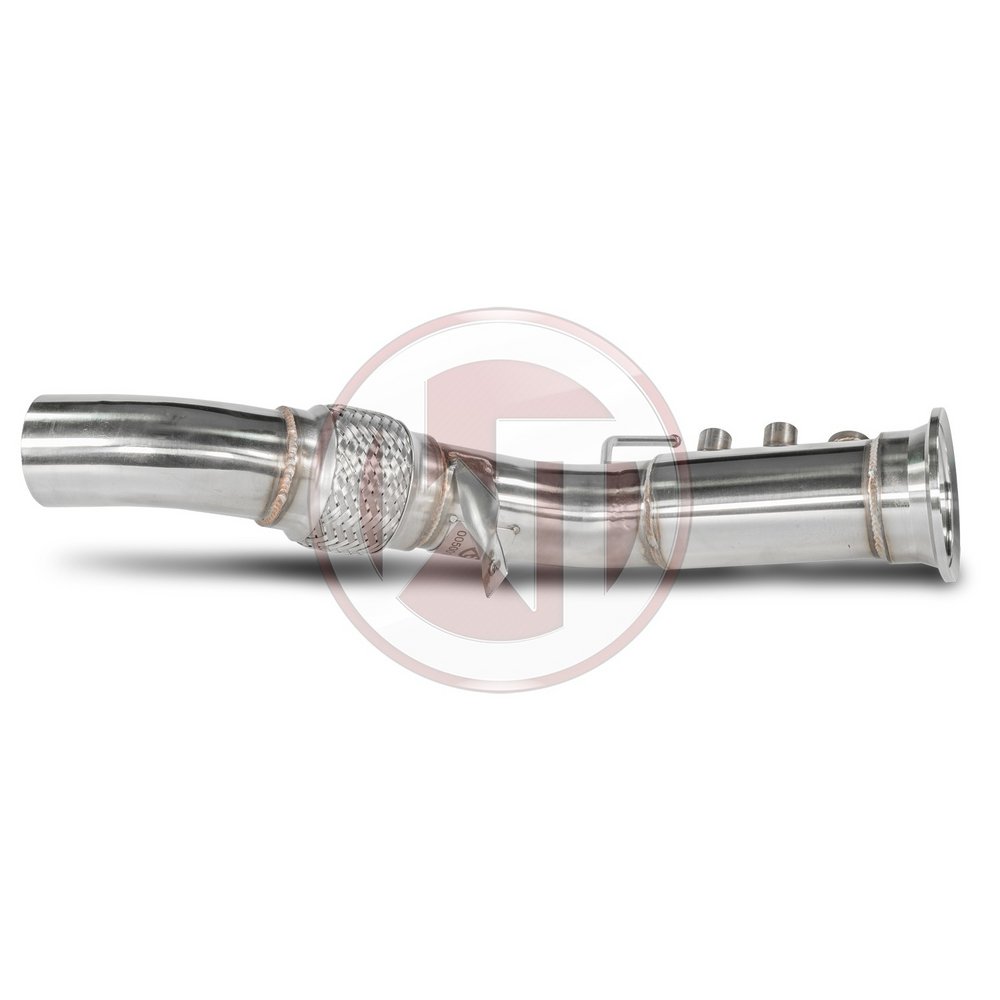

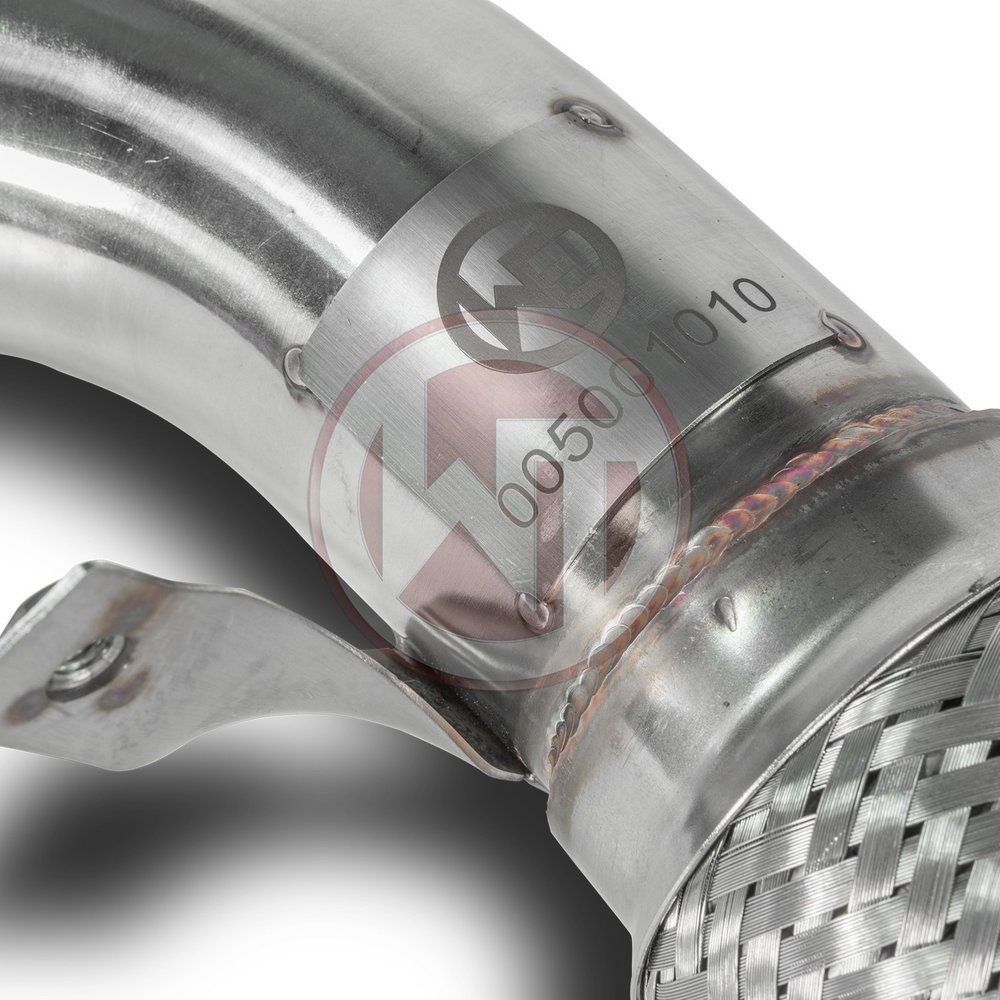

The Wagner-Tuning Downpipe Kit (DPF) 500001009High quality stainless steel SS304: Made from high quality stainless steel SS304 for maximum durability and performance.
100% perfect fit: Easy to replace with the standard part, no additional adjustments required.
Reduced thermal load on the turbochargers: Reduces the thermal load on the turbochargers, which improves service life and reliability.
Increased performance through back pressure reduction: Optimizes the exhaust gas flow and increases the performance of your BMW 335d for an impressive driving experience.
Noticeably more torque: Experience a significant increase in torque that takes your driving performance to a new level.
Diameter of Ø 70mm: Optimally sized to maximize exhaust flow and improve performance.
Ready to conquer the roads? Our downpipe kit DPF replacement for your BMW is the perfect choice for those looking for the highest performance and quality.
The Wagner Tuning downpipe Kit fits the following vehicles:
BMW 335d E90/E91/E92/E93 (2006-2011)*Replaces original BMW part number: 18308508523Part number 500001009*The software data status should be adapted to avoid the output of error codes in the DME.
*Not permitted in the area of the STVO.Disclaimer for catalytic converters
Please note that Wagner Tuning catalytic converters are intended for use on OEM vehicles for performance optimization. They are NOT intended for use in conjunction with ECU tuning. Wagner Tuning GmbH & Co. Kg. accepts no responsibility for damage caused by modifications to a vehicle, such as a tuned ECU and/or deactivation of the boost cut-off. Wagner Tuning GmbH & Co. Kg. is also not responsible for damage caused by engine malfunctions that create rich/lean conditions that are detrimental to the catalytic converter. All claims regarding a catalytic converter are subject to a warranty check. In order for a warranty to be honored, Wagner Tuning GmbH & Co. Kg. requires the purchaser to prove that the engine has been set up unchanged and in accordance with the original manufacturer's specifications and has been kept in proper working order. The end user assumes all responsibility for the legality of the use of a non-OEM catalytic converter on their vehicle for the region in which it is used.
