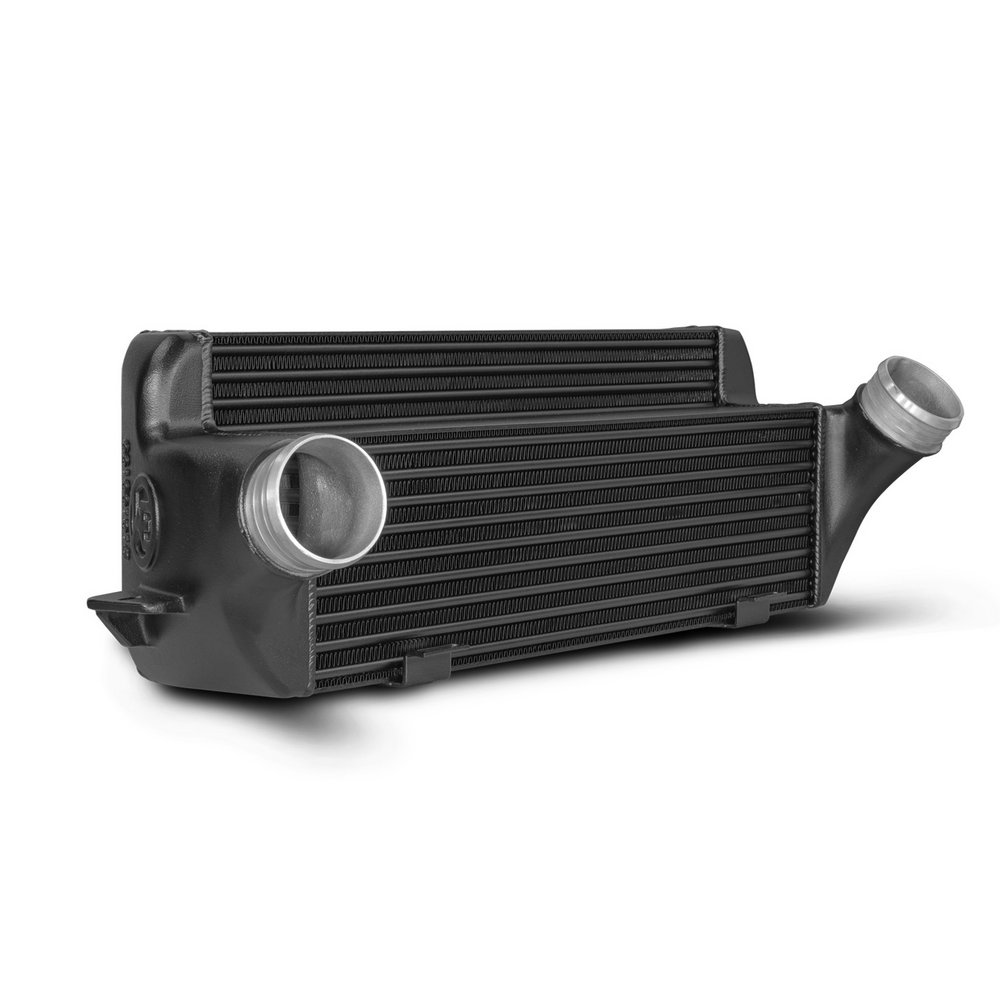

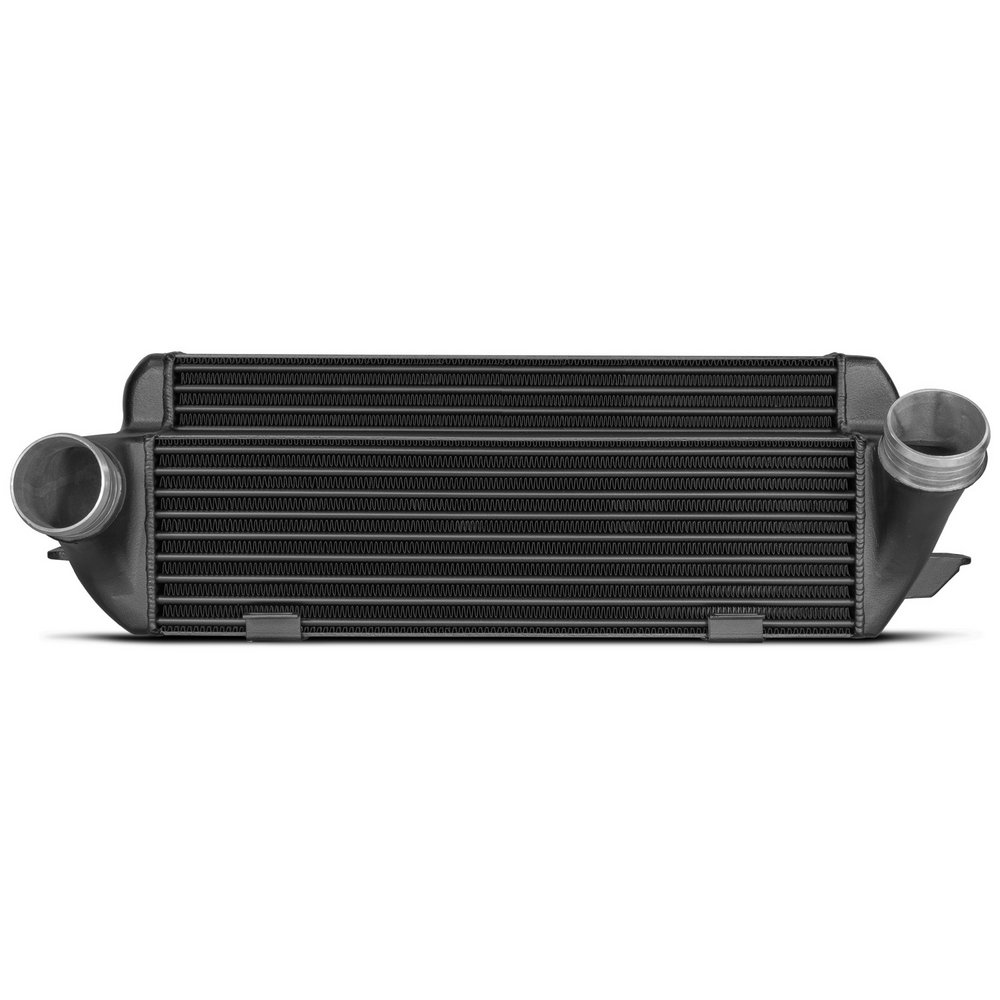

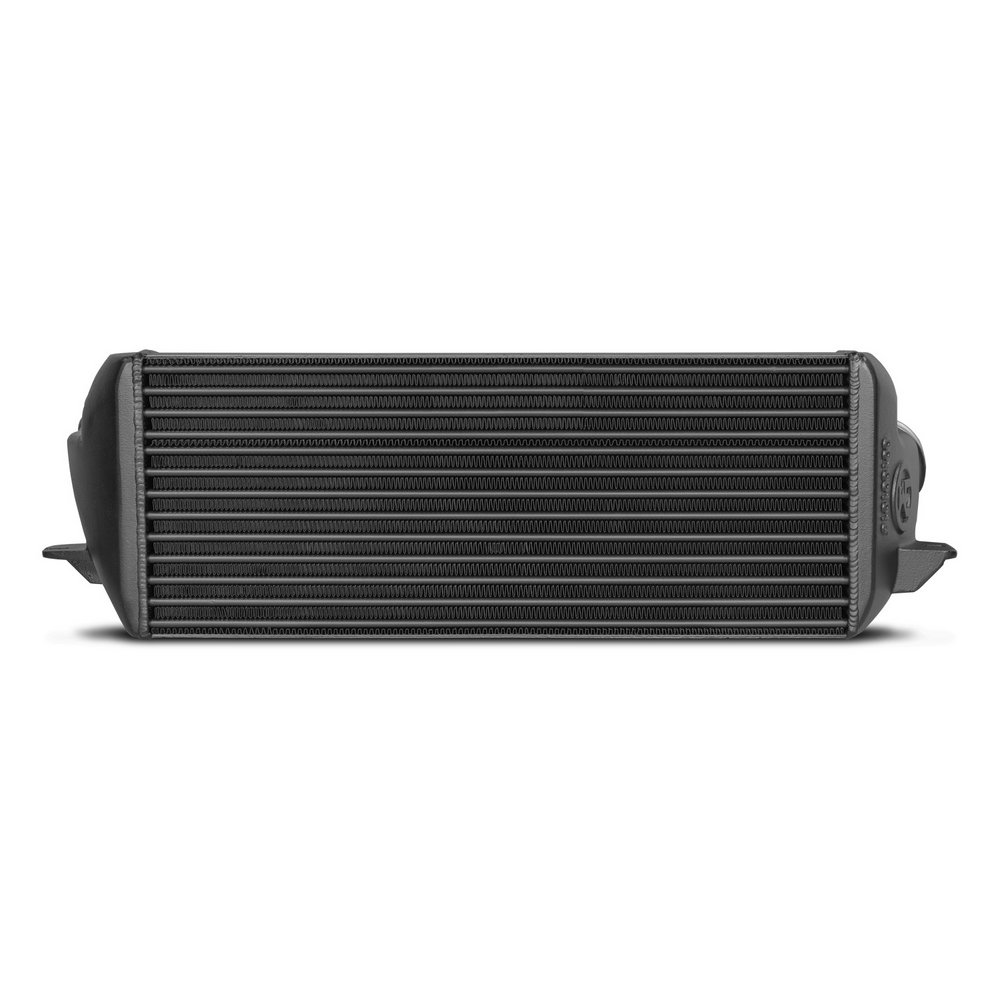

BMW E90 335d EVO2 Competition Intercooler Kit

Experience an impressive increase in performance with our Wagner Tuning performance intercooler!

With impressive intercooler core dimensions of 520 mm x 210 mm x 150 mm (staged volume: 13.6 liters), our performance intercooler offers an enormous 65% larger flow area and a whopping 87% more charge air volume compared to the stock intercooler. The high-quality Competition high-performance core with internal turbulators guarantees the best performance and optimal cooling. Despite its impressive size, the intercooler weighs just 7.4 kg, making it a lightweight in its class.

The cast aluminium end boxes have been optimised using advanced flow analysis in the CFD system to ensure optimum airflow. The EVO2 intercooler kit was specifically designed to meet the high demands of the big tuning stages on the BMW and 335i. We eliminated the original click connections and increased the connection diameter at the inlet and outlet to Ø70 mm, which means that the kit is equipped with reinforced silicone hoses. The result is outstanding cooling properties with minimal back pressure. In addition, all of our intercoolers are finished with a high quality anti-corrosion coating that ensures long-lasting and optimal cooling with a significant increase in performance.

The EVO3 high performance intercooler kit is completely ready to install and can be easily replaced with the stock intercooler. Due to the size, minor adjustments to the radiator support are required. The intercooler has been tested up to 6 bar and is pressure stable, so it also meets the requirements of racing. With all our products, we place great emphasis on continuous qualitative monitoring to always guarantee you the highest quality.

Take the performance of your BMW and 335i to a new level and experience peak performance with the EVO2 high performance intercooler from Wagner Tuning!

Advantages of the Wagner Tuning intercooler:
- Improved cooling performance
- 65% larger inflow area
- 87% more charge air volume
- Inlet and outlet extended to Ø70 mm
- Plug & Play

The BMW Competition Intercooler Kit EVO II from WAGNER TUNING fits to the following cars:
BMW 335d E90/91/92/93 (2005-2013)
*Adjustments to the vehicle are necessary

core dimensions OEM intercooler:
V = 7,29 L
A = 663 cm²

core dimensions Wagner Tuning intercooler:
V = 13,6 L
A = 1092 cm²

Part number: 200001170
Comes with:
1 intercooler (black coated)
3 silicone hoses
1 aluminium adapter (black anodized)
1 aluminium charge air pipe (black anodized)
1 mounting material
1 assembly instructions
