KTM X-Bow K04 Performance Intercooler Kit

Experience the ultimate performance upgrade for your KTM X-Bow with the Wagner Tuning high performance intercooler!

The 2.0 TFSI turbo engine of the KTM X-Bow has an indirect charge air cooling circuit, where the cooling process of the charge air is done by a water-cooled intercooler. With our specially designed high performance intercooler from Wagner Tuning you replace the original intercooler and experience a revolutionary increase in performance.

Our high performance intercooler features an innovative performance intercooler core with dimensions of 222 mm x 297 mm x 95 mm. It was developed specifically for the high demands of the KTM engine and offers an incredible 80% more external core volume compared to the stock intercooler. The ratio between internal and external cooling surface ensures maximum heat transfer and optimal internal airflow. The cast aluminium end boxes were designed using state-of-the-art CAD technology and optimised by CFD simulations. The result is outstanding cooling properties with minimal back pressure, increasing air mass flow by an impressive 33%. This also makes our kit ideal for racing. You benefit from optimum cooling of the supercharged air and a significant increase in performance.

To ensure a lasting cooling effect, all Wagner Tuning charge air coolers are provided with a heat-conducting anti-corrosion coating. The installation of the system is uncomplicated thanks to our detailed installation instructions and a direct replacement of the original intercooler is possible.

Advantages of this product:
- Direct replacement for the original intercooler.
- Significantly improved cooling performance
- 80 % more outer intercooler core volume
- 33 % more air mass flow and lower back pressure
- More power and torque for your engine
- Mechanical relief of the turbocharger
- All-aluminium intercooler, pressure stable up to 6 bar (tested)
- LLK connection towards throttle body enlarged from Ø62 mm to Ø70 mm

Experience the power of the Wagner Tuning high performance intercooler and maximize the performance of your KTM X-Bow to a new level!

Der Wagner Tunimg Performance intercooler fits the following models:
KTM X-Bow GT 220KW/299PS (2017+) K04 Turbo
KTM X-Bow R 220KW/299PS (2010+) K04 Turbo

core dimensions OEM intercooler:
180mm x 218mm x 90mm
V = 3,5 liter

core dimensions Wagner Tuning intercooler:
222 mm x 297 mm x 95 mm
V = 6.3 liters

Part number: 200001169.K04

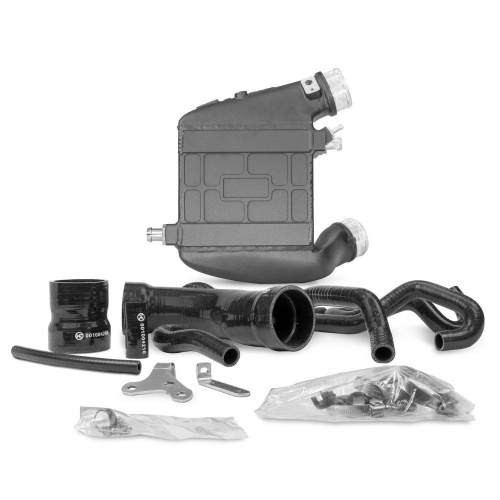

Kit comes with:
1 intercooler
1 silicone hose air
1 cooling water hose
1 mounting material
1 installation instruction
